Latheguard

Prevent accidents on the machine shop floor with our clear LEXAN®, semi-circular wrap-a-round guards. These guards have reinforced ribs, are light weight and swing away easily.

These shields made in the USA exceed O.S.H.A. requirements for safety. Neither razor sharp chips nor broken tool bits will penetrate the Lexan® Shield.

Prevent Accidents with Latheguard
Clear LEXAN, Semi-Circular Wrap-a-round Guards
- Heavy duty cast mounting bracket supplied
- Heavy duty chrome-plated extension tube and hardware
- Ready to mount; all you do is affix mounting bracket with two screws.
- Back of shield is reinforced with plated wire form housing
- Locks in swing away or functional positions
- Accepts 3 or 4 jaw chucks

Neither razor sharp chips nor broken tool bits will penetrate the lexan shield.
- Rib reinforced
- Robust construction
- Light in weight
- Swings away easily

All Latheguards supplied with a 13070 Mounting Bracket.

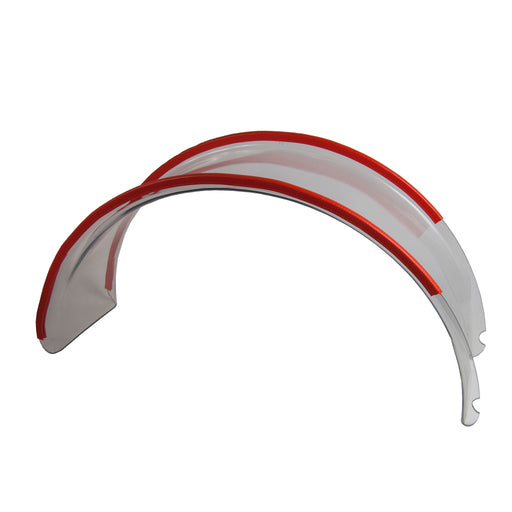

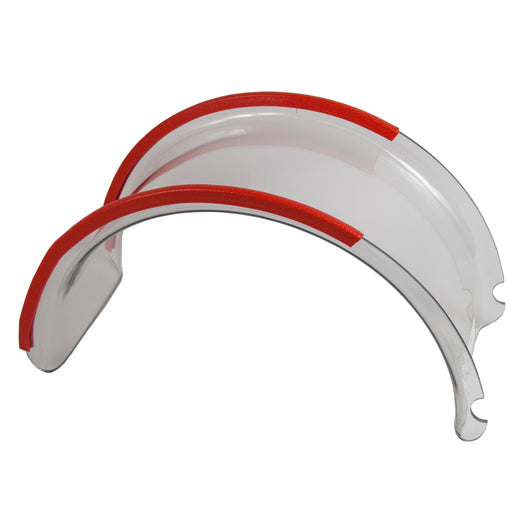

Latheguards and Replacement Shields

Model No. / Replacement Shield	Suggested Lathe Size	Center Height (A) (Shield Height)	Use With Chucks	Shield Width (F)	Shield Length (B)	Tube Length (E)
12999 / 13072	Very Small Lathes	3.9"	Up to 6" Dia	6 1/4"	7.8"	10"
13060 / 13065	6 to 12	6"	Up to 8" Dia	6 1/4"	11.8"	10"
13061 / 13066	12 to 16	8"	Up to 12" Dia	8"	15.8"	11 1/2"
13062 / 13063	16 to 20	10"	Up to 16" Dia	8"	19.70"	13"
13064 / 13067	20 to 24	13"	Up to 20"	8"	23.6"	13"

13059

Extra Long Tube (E) for lathes where chuck stick out a long way from headstock

16"

Mounting Hardware

Model No.	Suggested Lathe Size
13068	Headstock Mounting Bracket: For mounting to top or back of headstock.
13069	Extension/Telescoping Mounting Bracket: For top or back mounting. Range 3.25" to 5".
13070	Replacement/additional Standard Mounting Bracket
13071	Double Mounting Bracket: this enables you to mount the next larger size shield when changing from a 3 jaw chuck to a 4 jaw chuck.
13075	Long Reach Latheguard Mounting Kit: For easy mounting of Latheguard on large machines or difficult applications. Mount can be positioned up to 27" from Latheguard.

Interested in lighted guarding options? Check out our Latheguard-LED™ below!

Sort by

Show
24
36
48

View as

$34.00 USD

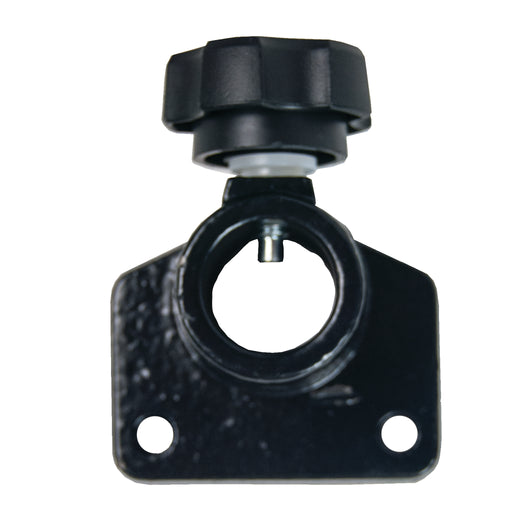

Standard Mounting Bracket

If you want an extra mounting bracket for latheguards.

$34.00 USD

$71.50 USD

Extension/Telescoping Mounting Bracket

Mounting Bracket Only for extension or telescoping type for top or back mounting. Range: 3.25" to 5"

$71.50 USD

$89.00 USD

Double Mounting Bracket

Double bracket: this enables you to mount the next larger shield when changing from a 3 jaw chuck to a 4 jaw chuck.

$89.00 USD

$34.00 USD

Headstock Mounting Bracket

For mounting to top or back of headstock on latheguards.

$34.00 USD

$96.50 USD

Long Reach Mounting Kit

Long reach latheguard mounting kit for easy mounting of Latheguard on large machines or difficult applications. Mount can be positioned up to 27" f...
