Float 'N Lock

Description

Model Types:

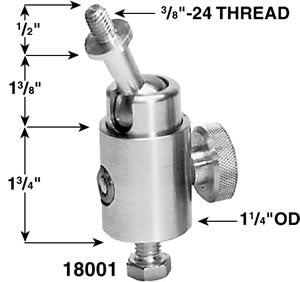

18001 - Basic Unit with Bottom Hole for mounting, ⅜-16 NC-Class 28.

18001-S - Basic Unit with ¼ - 20 Threaded Post, No Flange.

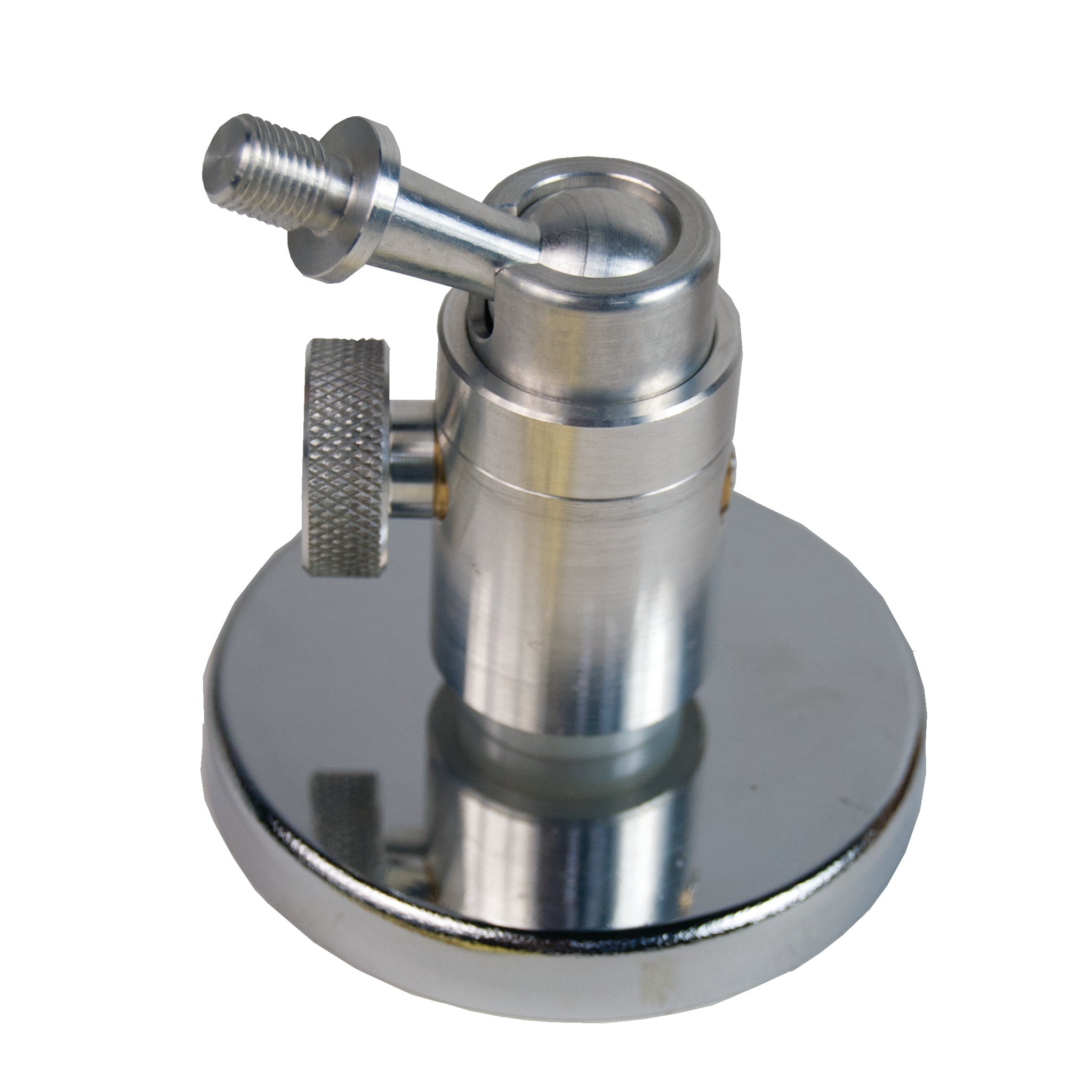

18002 - Basic Unit on 90 lbs. pull Disc Magnet - 3¼" dia. x .435" high.

18003 - Basic Unit mounted on C-Clamp. Capacity of C-Clamp: 1⅜" Vertically. Throat to Center of Screw - +".

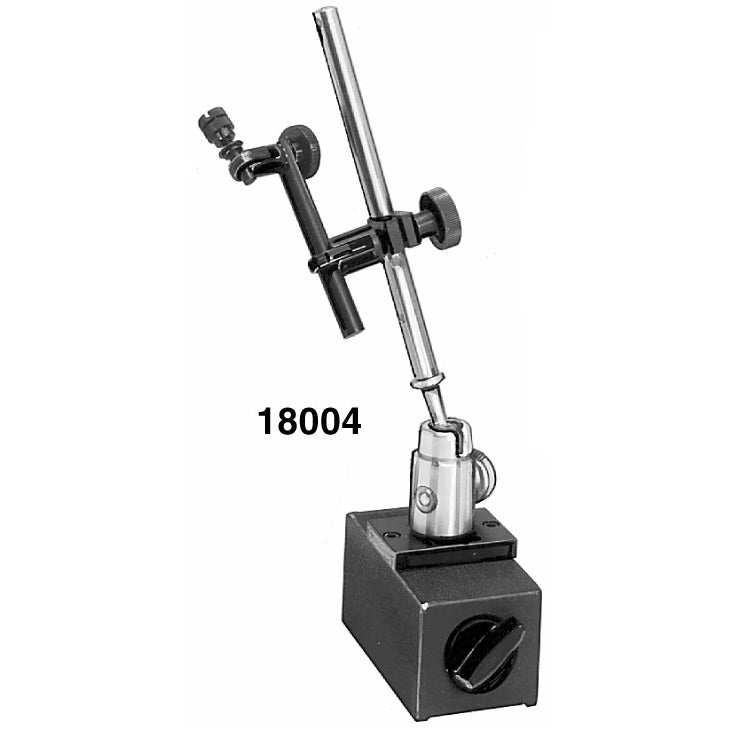

18004 - Basic Unit with Mag. Base and Holding Arm. Complete with 2-posts, lug back & heavy duty magnet (No. 11001). Total Height - 13". Main post - ½" dia. x 8" long. Second post - ⁷/₁₆" dia. x 3¾" long. 2 each - post clamps. Variable clamping capacity - from .125" up to .510"

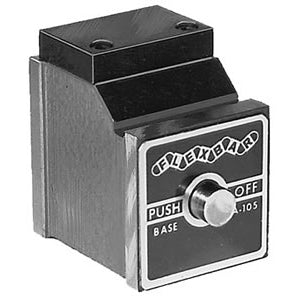

18007 - Basic Unit with Mag. Base 11003, On/Off Magnetic Base with Flat Bottom. with M8 x 1.25mm Mounting Thread Located Under Removable Flange and 65 lbs. of magnetic pull.

Details

UNIVERSAL POSITIONERS AND WORK HOLDERS

• It's an excellent Dial Indicator Holder.
• All metal parts used.
• Precision angled bearings interface and lock the ball precisely with a small turn of the locking knob. Excellent rigidity factor.
• Self-compensating - no need to disassemble to re-establish tension (as with other designs).
• Right angle notch (for 90° positioning) can be swung to any point 360° and then locked.
