Advanced Function Toolmaker's Microscope Systems

*send all purchase inquiries to Sales@Flexbar.com*

Offering enhanced capabilities not found in traditional toolmaker's microscope systems. Utilizing a compact frame with a precision X-Y stage, high resolution readout scales are connected to a multifunction Geometric  Readout box allowing for a wide range of measurement parameters not found in standard micrometer head style systems.

Model Types

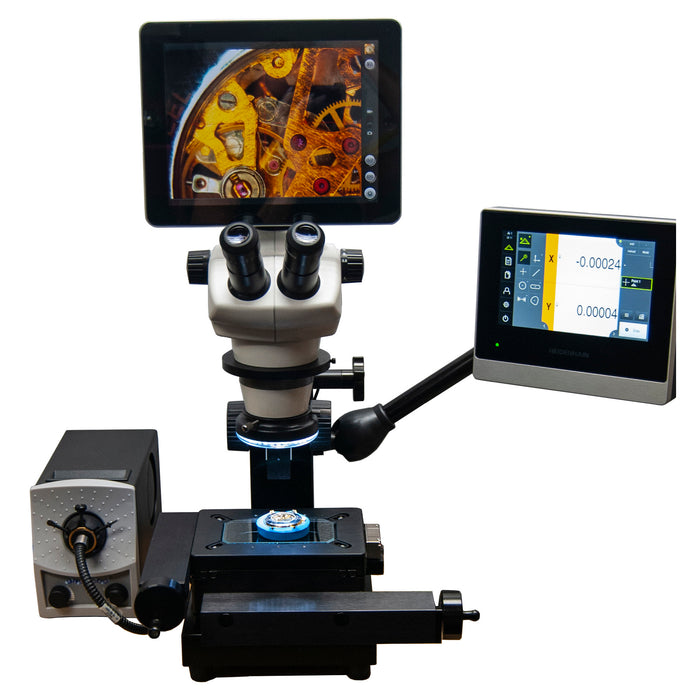

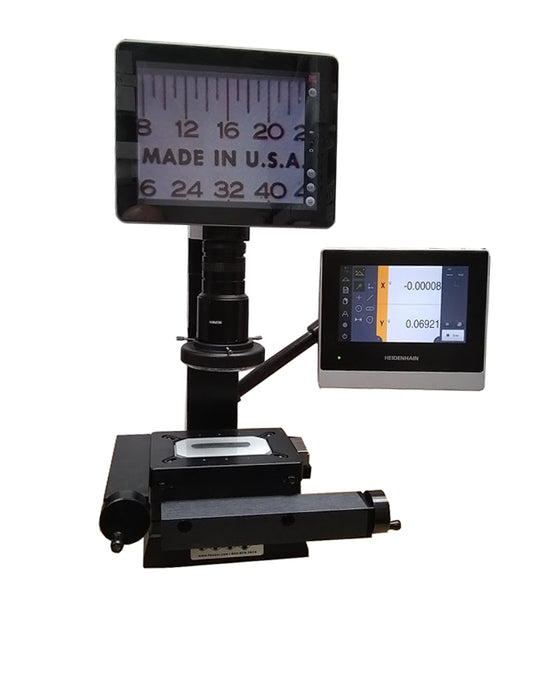

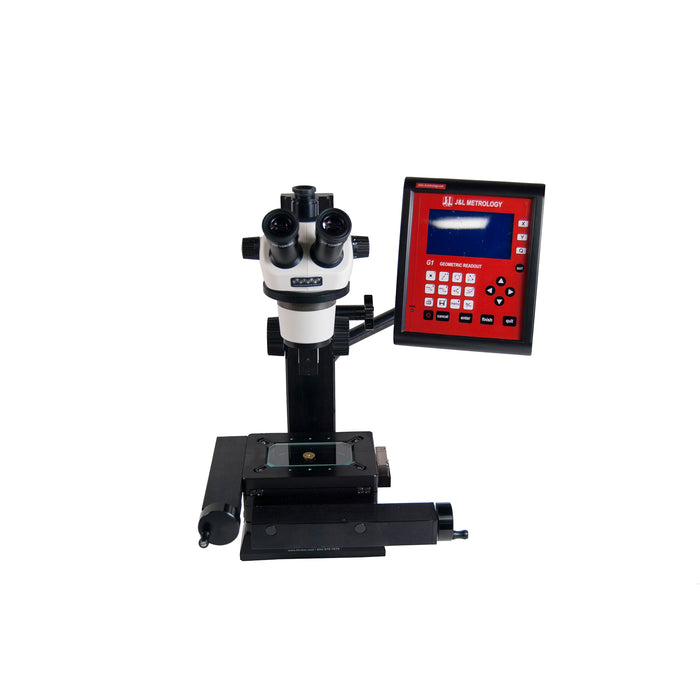

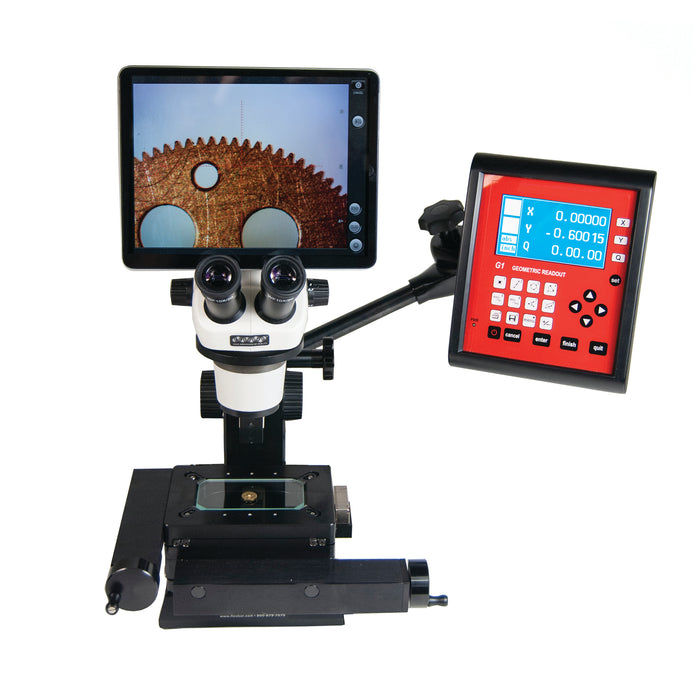

Available as a Basic TMX System, Video/Camera Ready System, Tablet Camera System, and a Widescreen Video System.

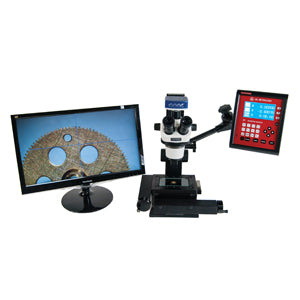

Wide Screen Video System with 8x to 50x Trinocular Microscope Head with 1080P HDMI Advanced Function Camera and 23" Widescreen HDMI monitor.

Components Included

• Precision machined aluminum alloy Z-column and base with adjustable Z-Axis microscope F-Holder
• 4" x 2" (100mm x 50mm) (x-y) crossroller based staging, open frame design
• 1 micron X-Y  Heidenhain scales
• 2 Axis Digital Readout Box with measurement functions
• DRO Positioning arm, ambidextrous
• High Quality Optics Basic or Trinocular Microscope Head with 10X eyepieces and Crosshair reticle
• Adjustable LED Ring Light with controller
