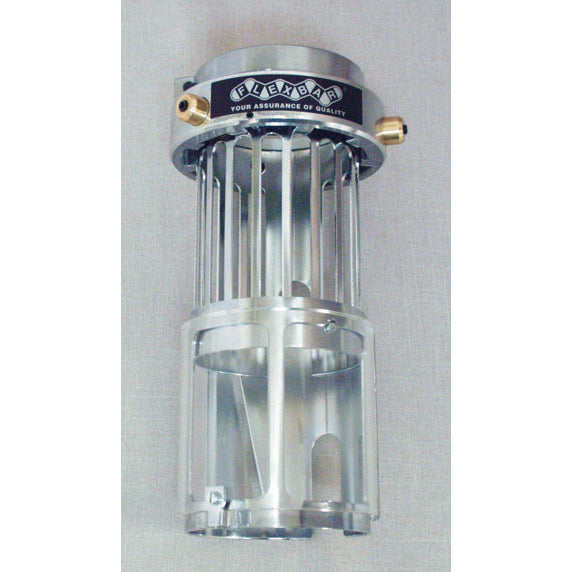

Flexbar Drillguard-LED™ - with 12V direct wire wall transformer

Flexbar Drillguard-LED™ - with 12V direct wire wall transformer

$249.00
SKU 13198

Protection with Productivity. Now featuring built-in illumination!

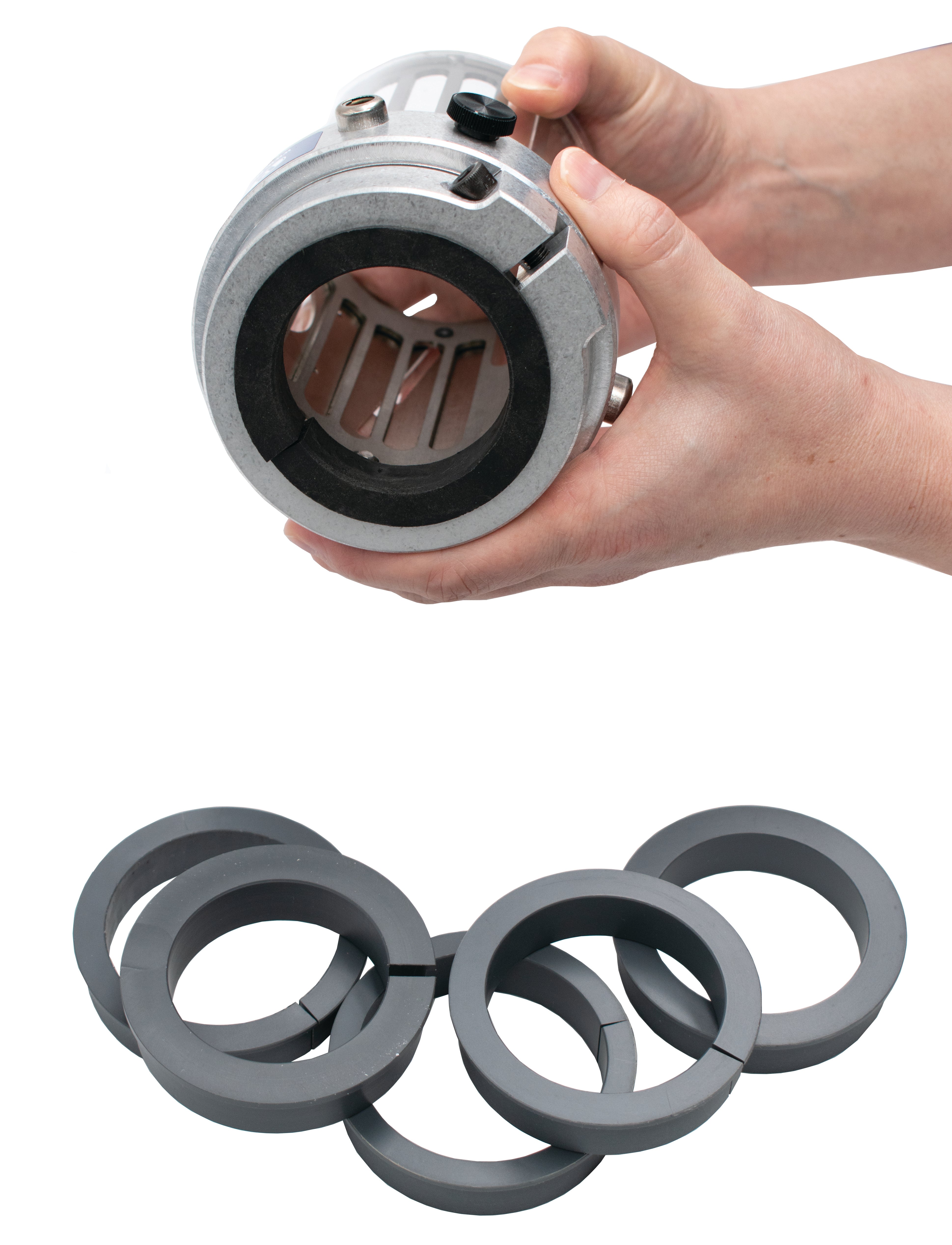

Interchangeable bushings available to accommodate most drill press quill sizes.

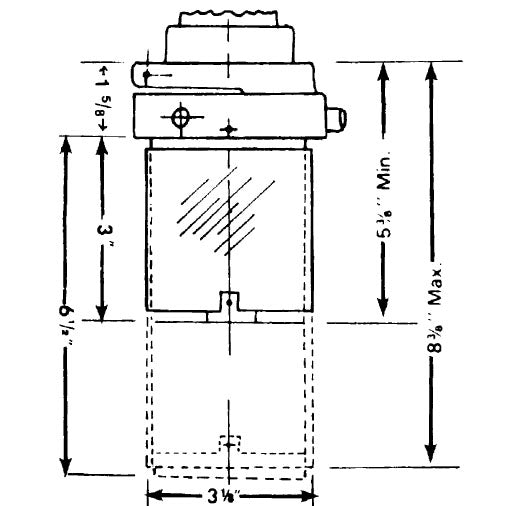

Drillguard can fit quills from 2.626” to 2.75”.  Interchangeable bushings available to accommodate drill press quill sizes down to 2”.  See chart below.

Features:

  1. Complete operator vision and protection assured.
  2. Smooth telescopic action via patented spiral guide grooves-window caged housing moves up while drill comes down; hence cutting tool is totally guarded.
  3. For drill changes - simply pull down on housing. Three spring loaded ball catches disengage and the housing drops out. Conversely, it quickly snaps back in place.
  4. Inner cage moving down protects window hence the operator from metal slivers.

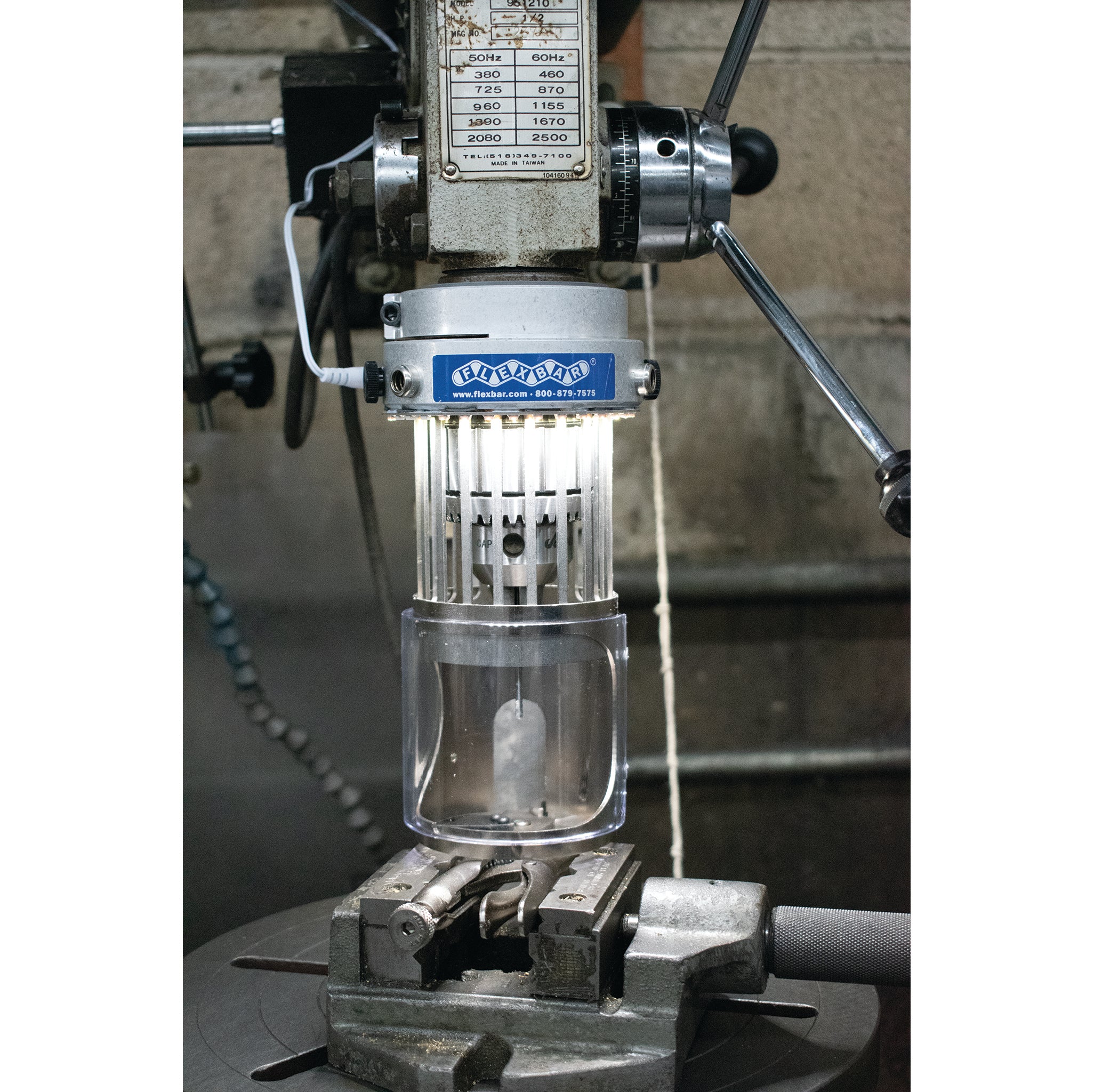

Unique built-in LED's provide super bright CRI 90 illumination.

  • Annular LED ring lighting puts out 6000K natural white light
  • 170° beam angle, auto-diffuse with no LED light hot spots
  • Water and coolant proof
  • System can be powered by either a 12V 2500mAh Rechargeable Battery Pack with on/off switch providing 4 hours of light per charge, or with an optional 12V direct wire wall transformer - 8 ft. cable with on/off switch



Quality made of heavy duty material, Drillguard comes complete with installation and operation instruction. The Quill Ring (which hold cage housing) is made of heavy die-cast aluminum, with smooth finish.

Drillguard Mounting Instructions
