Visorguard Universal

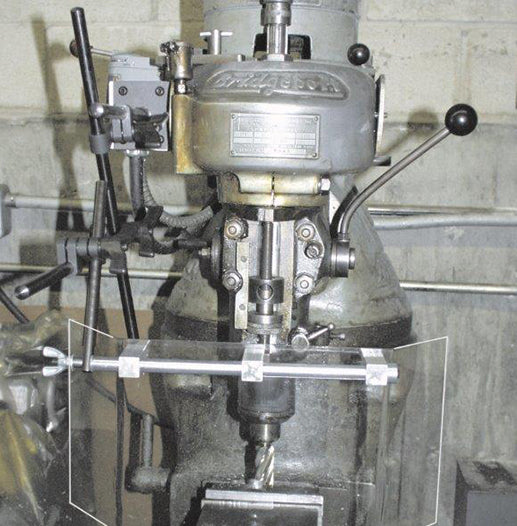

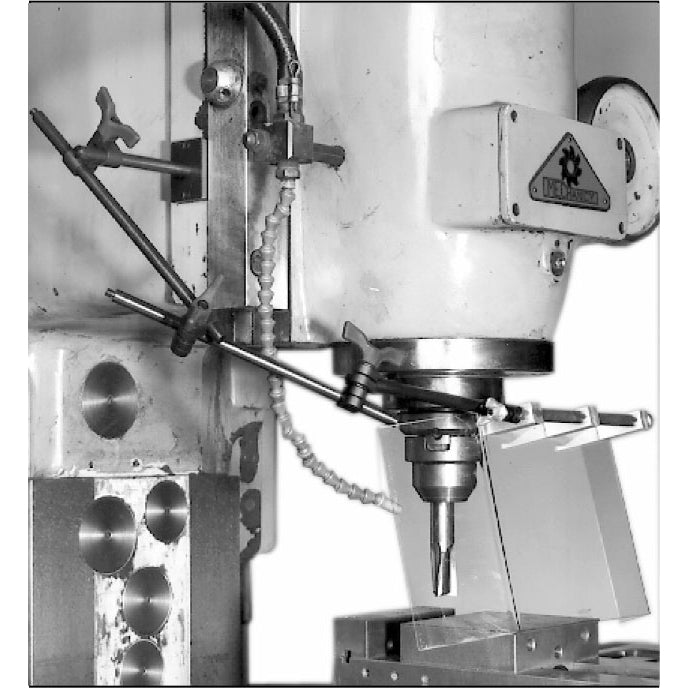

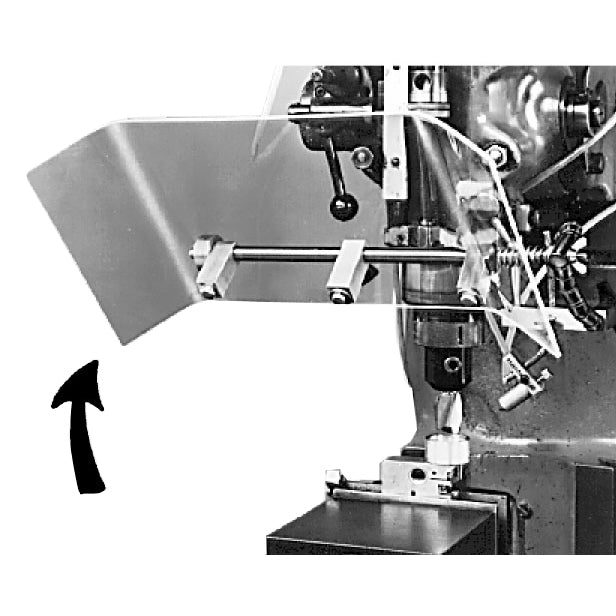

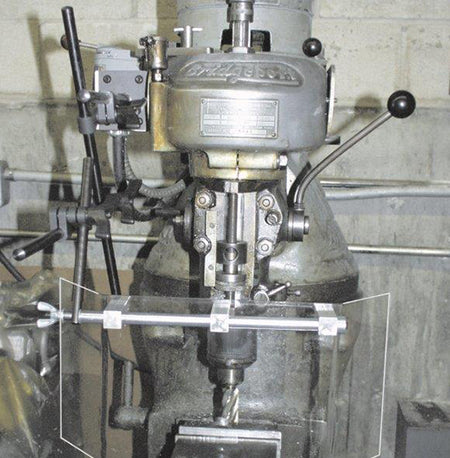

Unique universal positioning design is fully adjustable. Visorguard shield is mounted and supported by a series of heavy duty arms and swivel clamps thus allowing the operator to "custom fit" each guard as to overall length, angle, and position of shield. Wing-shaped Visorguard shield protects workers at adjacent machines.


LONG REACH FROM HEADSTOCK MOUNTING PLATE/POST IS ADJUSTABLE TO 36"

Visorguard Universal consists of:

• Mounting plate with 4" x ½" post - just drill and tap into headstock ... supplied with four cap screws
• 2 each 15" x ½" arms (24" arms available upon request - phone or fax)
• 3 each ½" x ½" heavy duty swivel clamps with extra-large wing style locking knob
• Model 13047 features a 16" x 8" high LEXAN® Visorguard shield assembly with 6" attachment post & coupling
• Model 13048 features a 24" x 8" high Lexan Visorguard shield assembly with 6" attachment post & coupling
